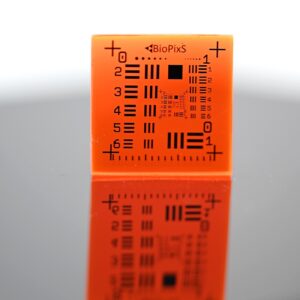

Looking to test and calibrate your imaging system with precision? Our High Resolution Fluorescence test targets combine high-contrast USAF resolution patterns with customizable fluorescent backing materials, simulating the most widely used fluorophores in microscopy, endoscopy, and fluorescence-guided surgery. With resolutions up to USAF group 8 and the flexibility to choose between positive or negative contrast, these targets are ideal for demanding high-resolution imaging applications.
Key features & benefits
-
High resolution imaging: covers USAF groups 0–8 or 2 -8 for detailed resolution analysis.
-
Positive and negative contrast options: supports both white-on-dark and dark-on-white patterns.
-
Fluorophore customization: choose from a range of emission/excitation matched dyes (see below).
-
Improved calibration accuracy: fluorescent background enables real-world system validation.
-
Superior to standard targets: outperforms conventional USAF targets with added fluorescent layer.
-
Compact and durable optical phantom: easy to integrate into standard optical setups.
Why Choose High Resolution Fluorescence test targets
Unlike conventional test targets that only offer resolution lines on plain backgrounds, BiopixS fluorescence test targets are built specifically for fluorescence imaging systems. Whether you’re validating a multimodal microscope or testing an endoscope for surgical navigation, our targets offer unmatched realism by mimicking real-world fluorescence emissions. And with access to higher resolution patterns than most alternatives on the market, you can push your system to its limits with confidence.
Applications
-
Fluorescence microscopy
-
Multimodal imaging
-
Endoscopy system calibration
-
Fluorescence-guided surgery
-
Imaging system benchmarking
-
Clinical device validation
Close matching fluorophores
BPXS1
Alexa 350, Pacific Blue, Hoechst 33342, DAPI, NADH, Pyroxidane*, Collagen*, Elastin*
BPXS3
Porphyrin, Alexa 568, Propidium, mRFP
BPXS4
Flavin, Lipopigments, Calcein, Acridin Orange DNA, ATTO 488, BODIPY – FL, EGFP, FITC, Alexa 448, Eosin, SYTO 14, FAD, SYTO 11, SYTO 13, SYTO 16, TOTO – 1
BPXS5
Rhodamine B, Alexa 555, Tetramethylrhodamine, Cy3
BPXSMP
Photoporyphryin IX, Photofrin, Alexa 594, Alexa 610, Texas Red, TOTO – 3
*spectra mimics above 400 nm

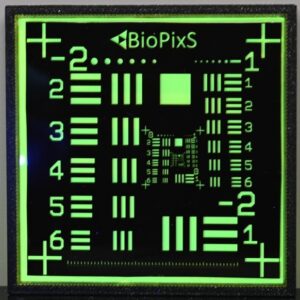

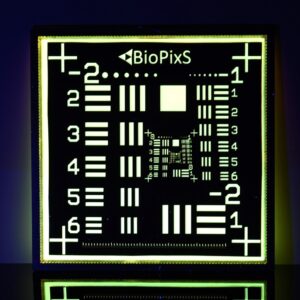

Looking for low resolution fluorescent test targets? Click here!
